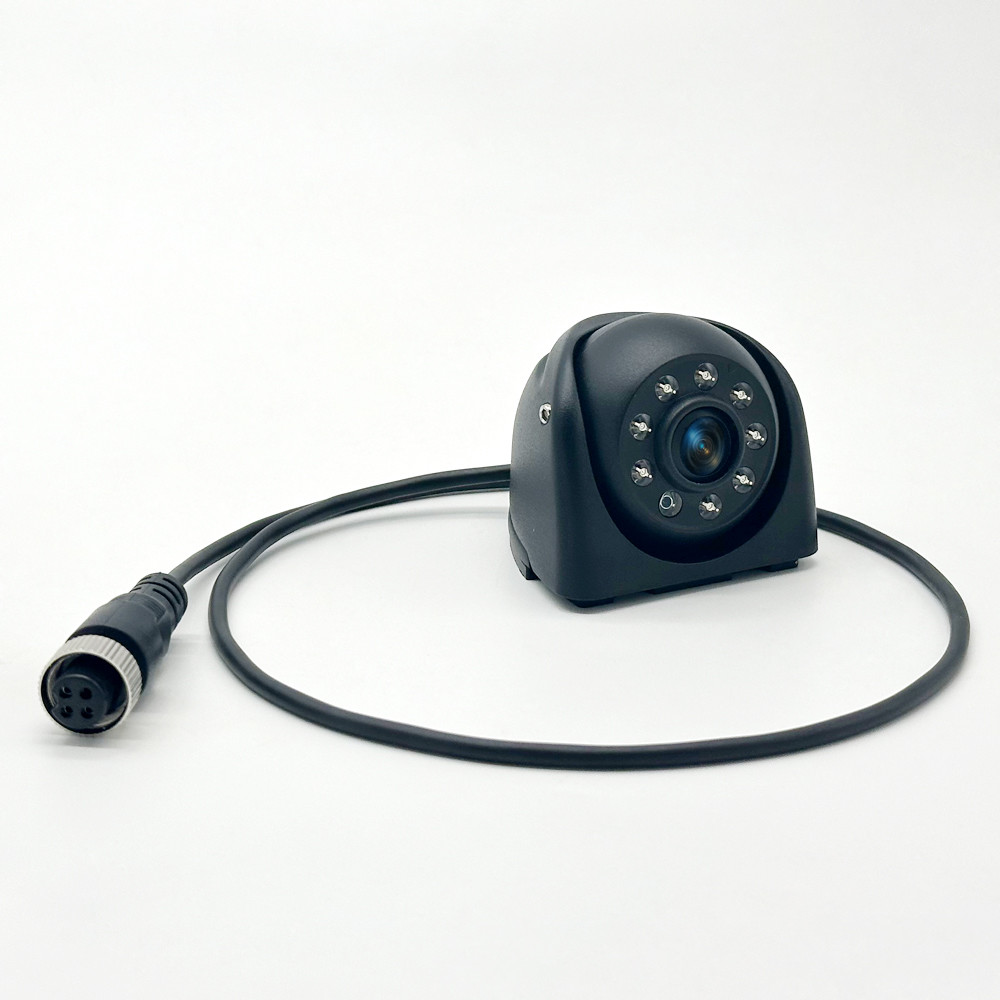

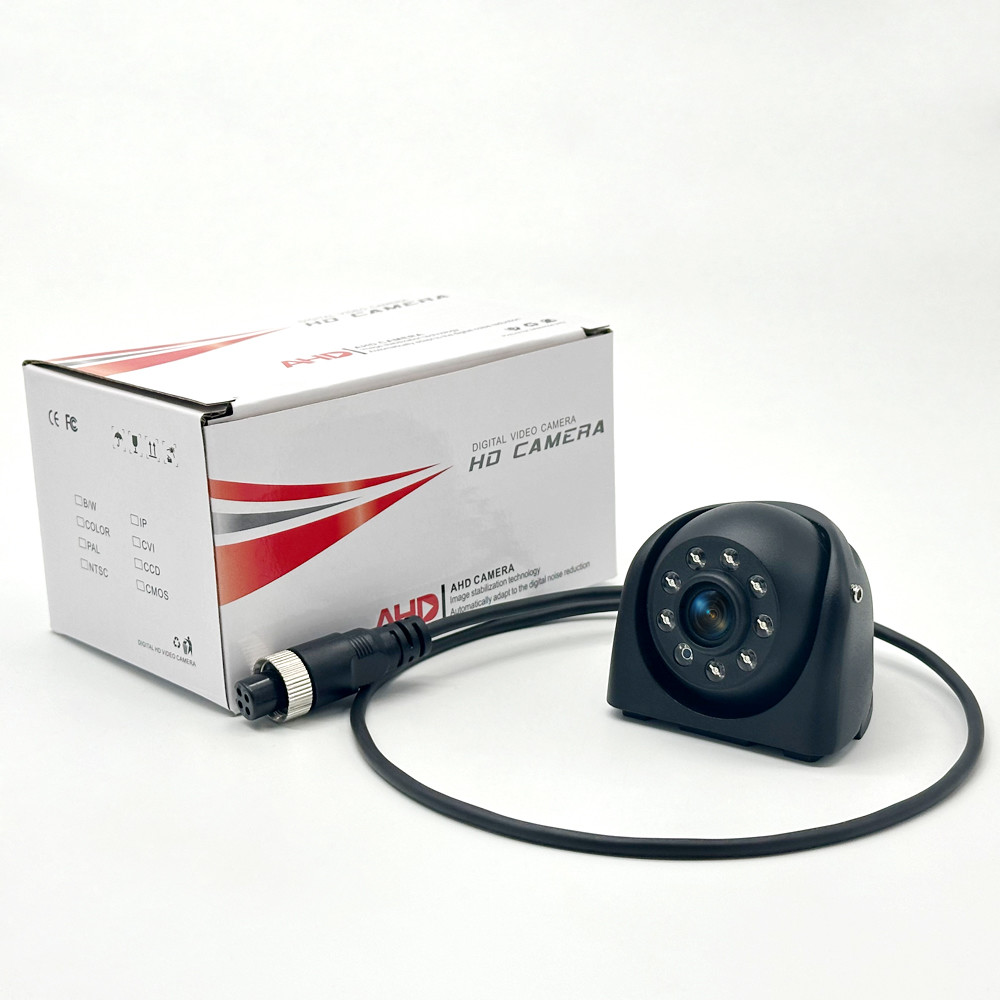

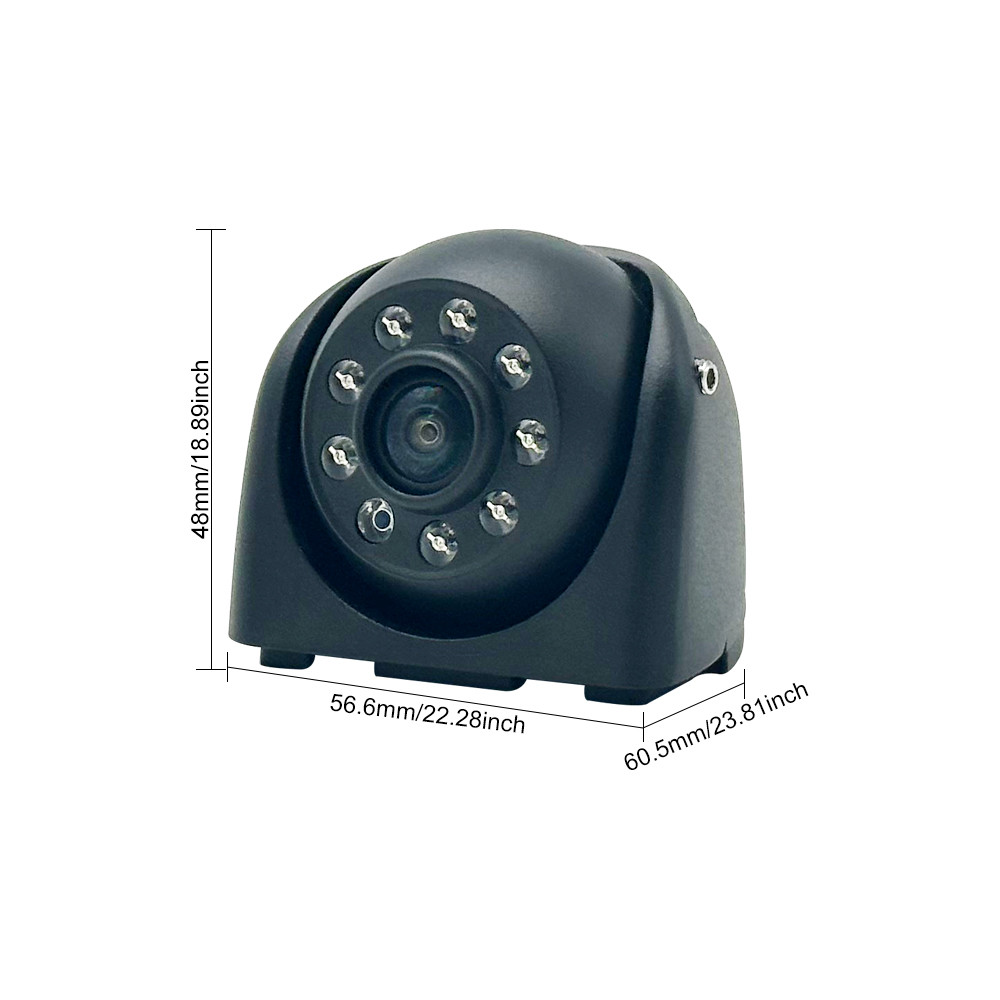

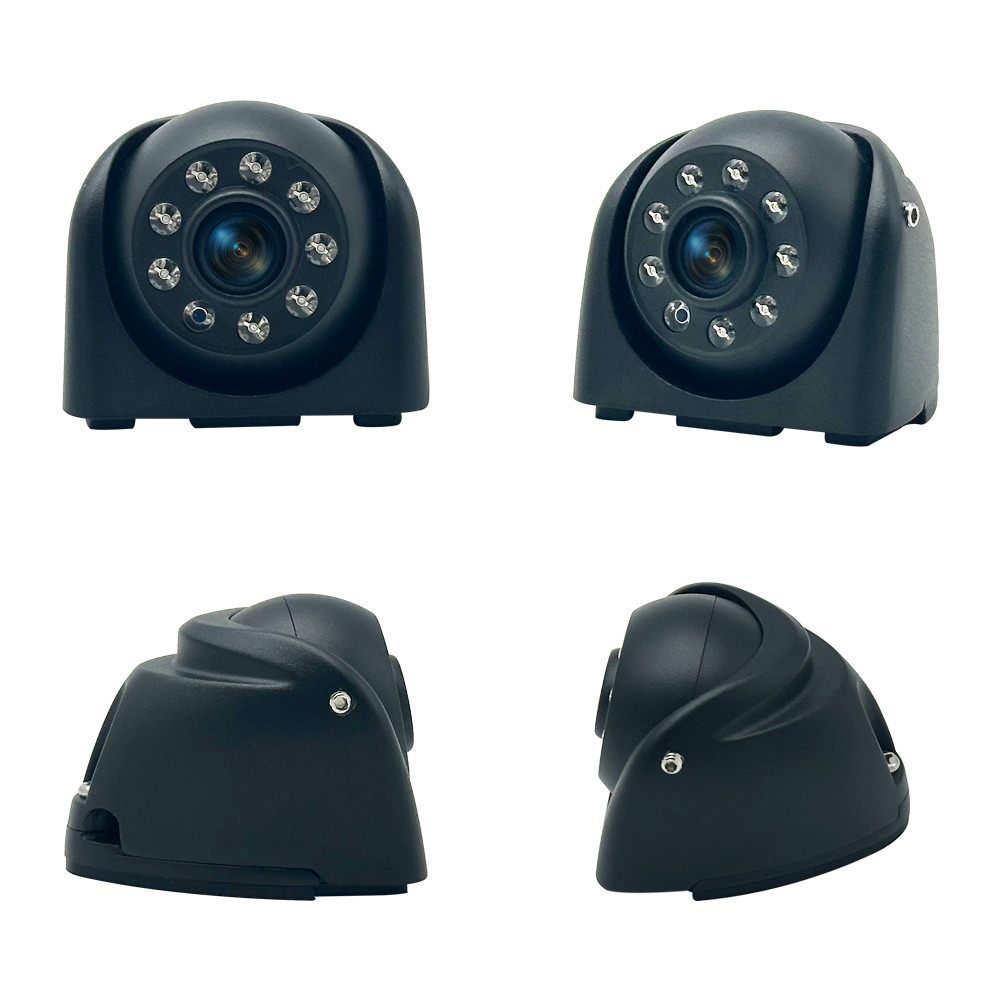

Rugged IP68 Metal Casing 8HD Infrared Vision Wired Backup Camera for Truck
This heavy-duty wired AHD backup camera is engineered for trucks, trailers, buses and industrial vehicles requiring reliable rear-view monitoring. Featuring 8HD infrared night vision, Sony sensor, 3DNR image noise reduction and a 170° fisheye ultra-wide angle, it delivers excellent clarity in low-light and harsh conditions. Its IP68 waterproof housing and 6.8-grade vibration resistance ensure stable performance across North America, Europe, the Middle East and global fleet markets.
Product Overview
This AHD wired backup camera is purpose-built for heavy trucks, buses, construction machinery and fleet vehicles. Equipped with a high-performance Sony sensor, 8HD infrared vision and microlight night capability, it provides outstanding clarity day and night. Its rugged IP68 metal casing and 6.8G shock resistance ensure long-term stability in demanding operating conditions.
| Item |
Value |
| Origin |
Shenzhen, China |
| View Angle |
170° fisheye |
| Voltage |
9-36V wide range |
| Function |
Rear view, reversing assist, low-light monitoring |
| Video Format |
AHD / 8HD |
| Waterproof Level |
IP68 |
| Night Vision |
Infrared + microlight + 3DNR |
| Screen Type |
Works with AHD monitors |
| Lens |
Ultra-wide fisheye lens |
| OEM/ODM |
Yes |
Key Features
- 8HD Infrared Night Vision for enhanced low-light visibility
- Sony Smart Sensor delivers crisp and stable AHD video output
- 170° Fisheye Ultra-Wide Angle covers large blind spots
- IP68 Waterproof & Dustproof for outdoor heavy-duty environments
- 6.8G Shockproof Structure ideal for trucks and construction vehicles
- 3DNR Noise Reduction ensures cleaner images in dark conditions
- 9-36V Wide Voltage Input compatible with all commercial vehicles
- All-Metal Housing designed for long lifecycle and heat resistance
Applications
- Heavy-duty trucks and semi-trailers
- Logistics and delivery fleet management
- Buses, coaches, vans and shuttle vehicles
- Construction machinery and mining equipment
- Agricultural tractors and harvesters
- Warehouse forklifts, loaders and special-purpose vehicles
Technical Specifications
- Image Sensor: Sony Smart Chip
- Video Format: AHD / 8HD
- Resolution: High-definition output
- Lens Angle: 170° fisheye ultra-wide
- Night Vision: Infrared + microlight low-light
- Waterproof Rating: IP68
- Shock Resistance: 6.8G vibration protection
- Voltage: 9-36V wide range
- Housing Material: Full metal
- Functions: Reverse trigger, mirror/normal switch optional
- Output Connector: Standard 4-pin aviation plug / customizable
- Operating Temperature: -20°C to +70°C
Why Choose This Product
- Designed specifically for heavy-duty fleets and long-term industrial use
- Uses premium-grade Sony imaging for superior clarity
- Ultra-wide angle dramatically reduces rear blind zones
- Built to survive harsh environments: rain, mud, dust and vibration
- Stable wired connection ensures zero interference and real-time video
- Ideal for OEM/ODM customized vehicle monitoring solutions
Shipping
The wired backup camera for truck will be shipped via a reputable courier service within 2 business days of placing the order. Shipping times may vary depending on the destination, but we aim to have the wired backup camera delivered within 5-7 business days. Customers will receive a tracking number to track their package once it has been shipped.
FAQ
What is your product warranty terms?
Generally, we provide 12 months warranty for all customers.
What is your MOQ requirement?
Depend on different product, small quantity order can be acceptable.
What kind of payment term can be acceptable?
T/T or LC is acceptable.
What is the lead time of the samples and mass goods?
The lead time of the sample: 5-7 days. The mass goods should be negotiated.
What is your after sales service rule?
Generally, we give suggestion of spare parts when customer place order. And we will provide technical support online, during the customer meet problem of installation.
VisionCarCamera Brand Advantages
VisionCarCamera has been a leader in automotive electronics for over 15 years, providing innovative and reliable solutions such as wired backup camera. Our expertise includes developing advanced camera systems, vehicle monitoring technologies, and safety devices. With OEM and ODM capabilities, we offer customized solutions for clients worldwide. Our products comply with international certifications like ISO9001, CE, and RoHS, ensuring top-quality standards. Serving markets across Europe, the United States, the Middle East, and more, VisionCarCamera is your trusted partner for cutting-edge vehicle safety systems.
