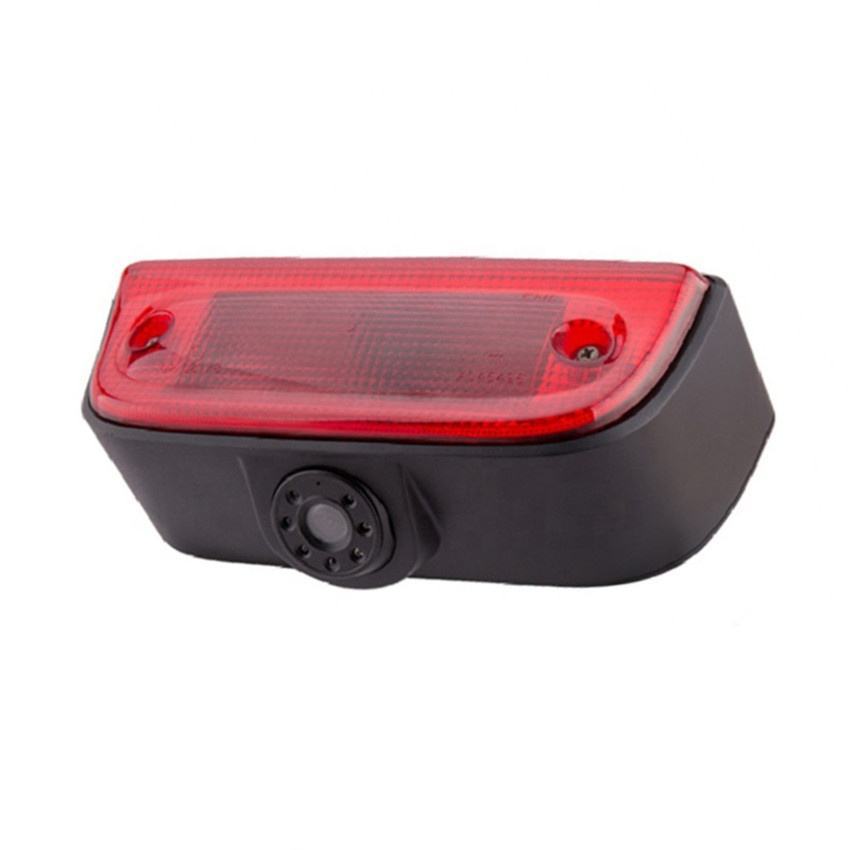

This Brake Light Integrated Rear View Camera for Nissan NV200 is an OEM-style rear vision solution specifically engineered for commercial vans, fleet vehicles, and system integrators requiring factory-fit installation and long-term reliability. By integrating the camera module directly into the high-mount stop lamp, the system preserves the original vehicle appearance while providing a stable, elevated rear viewing angle.
Designed for logistics fleets, service vans, and passenger transport vehicles, this camera delivers consistent rear visibility under urban, highway, and depot operating conditions.
| Item | Specification |
|---|---|
| Product Type | Brake Light Integrated Rear View Camera |
| Vehicle Compatibility | Nissan NV200 |
| Installation Position | High Mount Stop Lamp / Rear Door |
| Image Sensor | CMOS / AHD Sensor (Optional) |
| Video System | CVBS (PAL/NTSC) / AHD 720P / 1080P |
| Effective Resolution | 720 × 576 (CVBS) / 1280 × 720 / 1920 × 1080 |
| Lens Angle | 120° - 170° Wide Angle |
| Night Vision | Infrared LED / Low-Light Starlight (Optional) |
| Minimum Illumination | 0.01 Lux (IR On) |
| Signal Output | RCA / 4-Pin Aviation (Optional) |
| Power Supply | DC 12V (Vehicle Power) |
| Waterproof Rating | IP67 / IP68 |
| Operating Temperature | -20°C to +70°C |
| Housing Material | ABS + Optical Glass Lens |
| Mounting Type | OEM Replacement, No Body Drilling |
| Mirror Image | Optional (Selectable) |
| Parking Guidelines | Optional (On/Off via wire cut) |
| Certifications | CE / RoHS (Optional) |
| OEM Customization | Logo / Cable Length / Chipset / Housing Color |

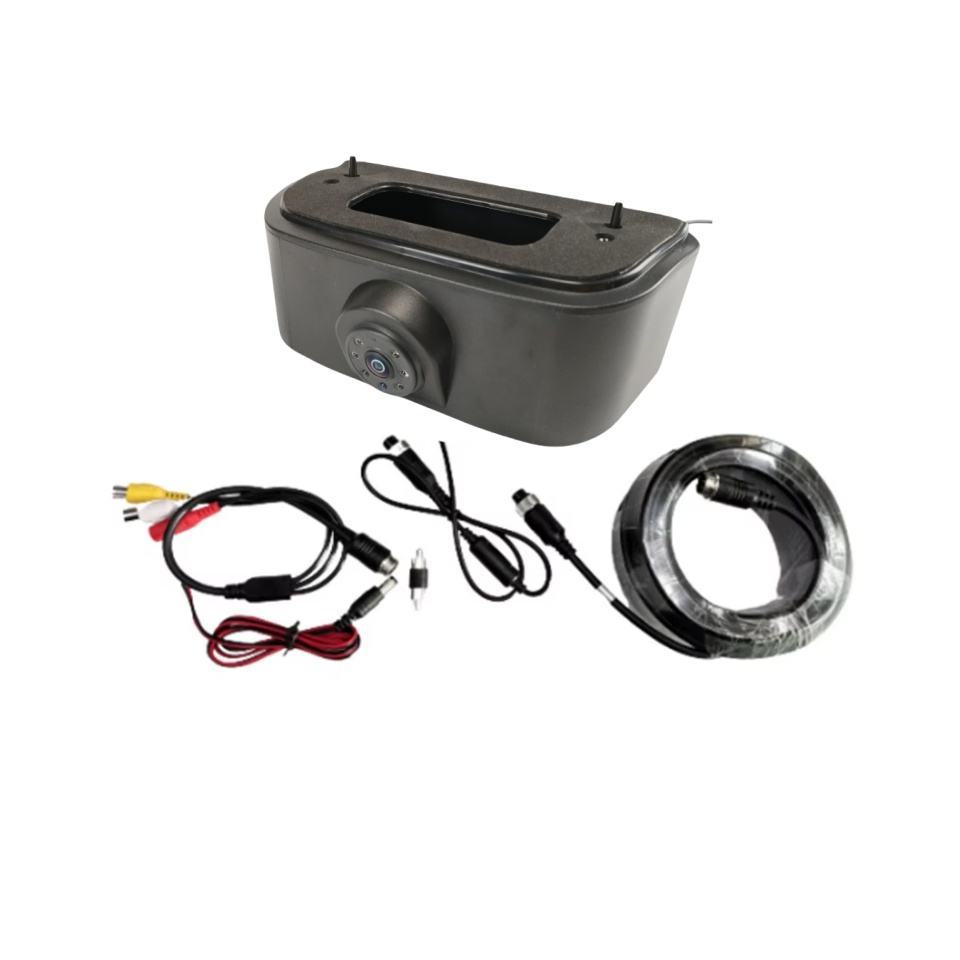

The camera housing is precision-molded to match the original Nissan NV200 brake light geometry. Installation is performed as a direct replacement of the factory stop lamp, requiring no drilling or structural modification to the rear door. This approach significantly reduces installation time, eliminates body damage risk, and ensures repeatable results across fleet deployments.
The integrated design also protects the camera from impact zones and reduces exposure to road debris compared to bumper-mounted solutions.
The camera is equipped with a wide-angle optical lens optimized for rear coverage of commercial vans. Depending on project requirements, the system supports CVBS analog or AHD digital video output, enabling compatibility with existing OEM head units, aftermarket monitors, or MDVR systems.
High-sensitivity image sensors ensure stable color reproduction during daytime operation, while optional infrared or low-light night vision modes provide clear visibility in poorly lit environments such as warehouses, underground parking, or nighttime delivery routes.
For fleet safety and compliance, the camera integrates automatic night vision functionality. Infrared LEDs or starlight sensors activate in low illumination, allowing drivers to clearly identify obstacles, pedestrians, loading docks, and vehicles during reversing maneuvers.
This feature significantly reduces blind-spot incidents and improves operational safety for delivery and shuttle fleets.
Built for continuous outdoor operation, the camera module meets IP67/IP68 waterproof standards, protecting internal components against rain, snow, pressure washing, and dust ingress. The sealed housing and automotive-grade cable assembly ensure stable performance across temperature extremes commonly encountered in commercial vehicle use.
The system is tested for vibration resistance, making it suitable for long-distance transport, uneven road conditions, and daily fleet operation.
The camera supports multiple video formats and connector options, allowing seamless integration with:
Optional guideline overlays and mirror image selection enable easy adaptation to different regional driving standards and display configurations.
This product is designed as an OEM platform, supporting customization of chipset, resolution, cable length, connector type, and branding. It is suitable for bulk deployment and long-term supply programs, ensuring consistency across vehicle batches.
